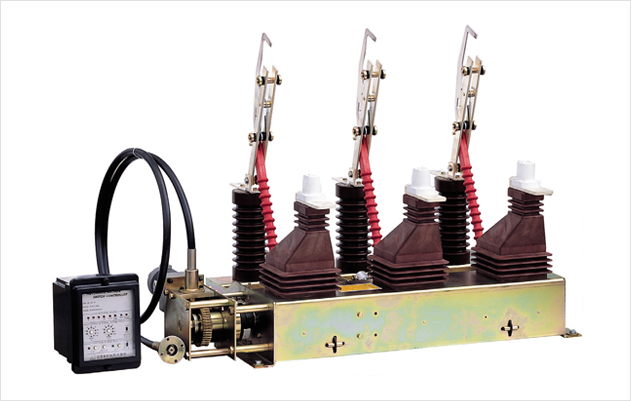

Air Insulated Auto Sectionalizing Switches
- Air-Insulated Auto-Sectionalizing Switches(AISS)
- Kyungdong Electric's Air-Insulated Auto-Sectionalizing Switch is the first indoor type switch developed in Korea with its brand name registered as AISS. It cooperates with the backup protective device and blocks the fault section automatically. It is installed on the customer’s faucet penetration point in which the load capacity of the substation CB or recloser is below 4,000kVA (special load 2,000kVA) on a 22.9kV-y distribution line.
Specifications
| Specifications | 25.8㎸ | Rated breaking current | 900A |
|---|---|---|---|
| Rated frequency | 60㎐ | Rated closing current | 15㎄ Asym |
| Rated current | 200A | Power frequency withstand voltage | 60㎸/ 1min |
| Rated short time current | 15㎄ Instantaneous Asym | Impulse withstand voltage | 150㎸(1.2X50㎲) |
| 10㎄ 1 second Sym | Inrush current restraint time | 0.5, 1.0 sec | |
| 3.5㎄ 10 second Sym | Rated control voltage | DC24V(AC220V Charing) | |
| Minimum operation current | Phase | 10, 20, 30, 50, 70, 100, 140, 200A, BLOCK | |
| Ground | 5, 10, 15, 25, 35, 50, 70, 100A, BY-PASS | ||
Product Attributes
- Base insulator with a built-in current transformer
- This compact, light-weight base insulator newly developed by Kyungdong dramatically reduces the size and weight of the AISS. It is small enough to install in a space for general LBS (Patent Application No. 10-2008-0046262).
- Manual operating mechanism
- This product offers convenient manual operation at any place by simply fixing the cable without requiring a separate operating mechanism.
- Control box
- This product is designed so that it can be directly attached to the switchboard door, offering convenient management and control of the AISS operating status. Its push-type button correction tap allows the user to easily correct and check the current (Utility Model Registration No. 0182617).
